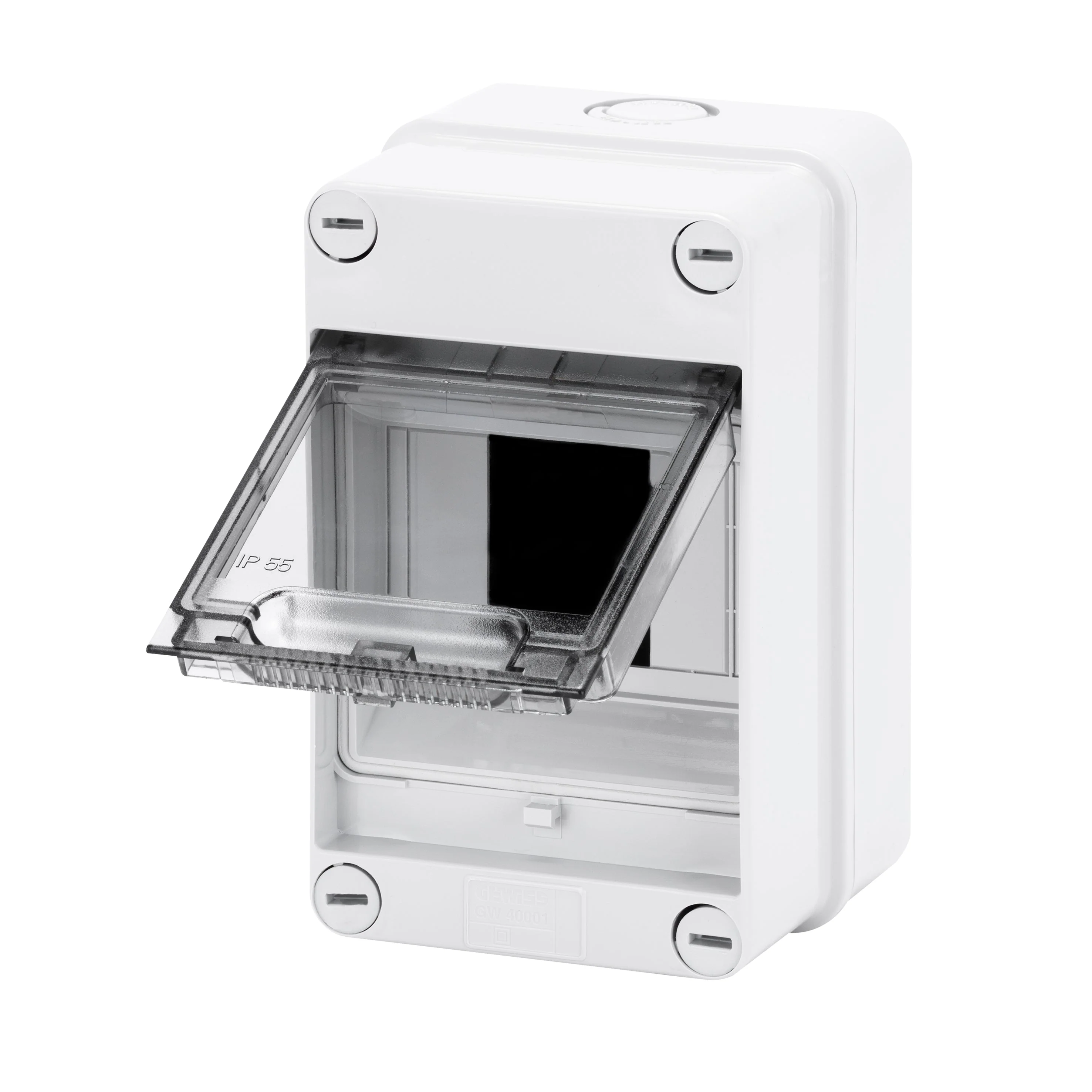

Gewiss GW40001 4 Module IP55 Enclosure
4 Module IP55 Enclosure
Gewiss GW40001
- Standards: IEC 60670-1; IEC 60670-24; EN 60670-1; EN 60670-24
- IP55 and IK09 Rated
- UV Resistant (ISO 4892-2)
- Rated insulation voltage: 1000V in accordance to EN 62208
- Rated current: 125A
- Rated voltage: 400V
The Gewiss GW40001 4 Module Enclosure is engineered to meet rigorous standards including IEC 60670-1, IEC 60670-24, EN 60670-1, and EN 60670-24. It features IP55 and IK09 ratings for robust protection against dust, water jets, and mechanical impact. Constructed from halogen-free technopolymer GW PLAST, it offers UV resistance (ISO 4892-2) and complies with fire safety through a 650°C glow wire test and thermo-pressure resistance at 70°C. Rated for 1000V insulation voltage (EN 62208), 400V operating voltage, and 125A current, it supports installation in temperatures from -25°C to +60°C, ensuring durability and safety in demanding electrical environments.
.
Â
| Brand | Gewiss |
| Colour | White |
| Dimensions | 170 x 105 x 98mm |
| Guarantee | 1 Year |
| IP Rating | IP55 |
| Material | Technopolymer GW PLAST |
| Mounting | Surface |
| Number of Modules | 4 |
| Packaging Types | Each |
| Type | Modular Enclosure |
4 Module IP55 Enclosure
Gewiss GW40001
- Standards: IEC 60670-1; IEC 60670-24; EN 60670-1; EN 60670-24
- IP55 and IK09 Rated
- UV Resistant (ISO 4892-2)
- Rated insulation voltage: 1000V in accordance to EN 62208
- Rated current: 125A
- Rated voltage: 400V
The Gewiss GW40001 4 Module Enclosure is engineered to meet rigorous standards including IEC 60670-1, IEC 60670-24, EN 60670-1, and EN 60670-24. It features IP55 and IK09 ratings for robust protection against dust, water jets, and mechanical impact. Constructed from halogen-free technopolymer GW PLAST, it offers UV resistance (ISO 4892-2) and complies with fire safety through a 650°C glow wire test and thermo-pressure resistance at 70°C. Rated for 1000V insulation voltage (EN 62208), 400V operating voltage, and 125A current, it supports installation in temperatures from -25°C to +60°C, ensuring durability and safety in demanding electrical environments.
.
Â
| Brand | Gewiss |
| Colour | White |
| Dimensions | 170 x 105 x 98mm |
| Guarantee | 1 Year |
| IP Rating | IP55 |
| Material | Technopolymer GW PLAST |
| Mounting | Surface |
| Number of Modules | 4 |
| Packaging Types | Each |
| Type | Modular Enclosure |
Original: $20.58
-65%$20.58
$7.20Description
4 Module IP55 Enclosure
Gewiss GW40001
- Standards: IEC 60670-1; IEC 60670-24; EN 60670-1; EN 60670-24
- IP55 and IK09 Rated
- UV Resistant (ISO 4892-2)
- Rated insulation voltage: 1000V in accordance to EN 62208
- Rated current: 125A
- Rated voltage: 400V
The Gewiss GW40001 4 Module Enclosure is engineered to meet rigorous standards including IEC 60670-1, IEC 60670-24, EN 60670-1, and EN 60670-24. It features IP55 and IK09 ratings for robust protection against dust, water jets, and mechanical impact. Constructed from halogen-free technopolymer GW PLAST, it offers UV resistance (ISO 4892-2) and complies with fire safety through a 650°C glow wire test and thermo-pressure resistance at 70°C. Rated for 1000V insulation voltage (EN 62208), 400V operating voltage, and 125A current, it supports installation in temperatures from -25°C to +60°C, ensuring durability and safety in demanding electrical environments.
.
Â
| Brand | Gewiss |
| Colour | White |
| Dimensions | 170 x 105 x 98mm |
| Guarantee | 1 Year |
| IP Rating | IP55 |
| Material | Technopolymer GW PLAST |
| Mounting | Surface |
| Number of Modules | 4 |
| Packaging Types | Each |
| Type | Modular Enclosure |
