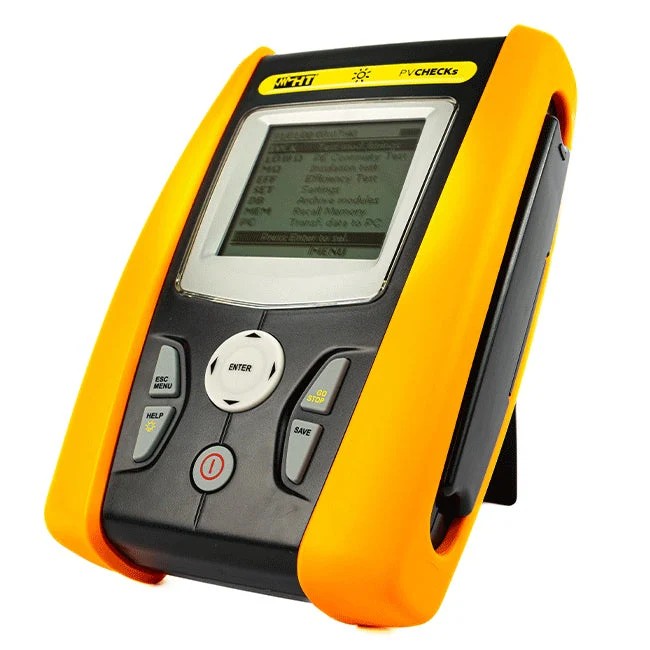

TIS Solar Multifunction Commissioning Checker

PVCHECKS

• Maintenance of photovoltaic system
• Continuity of protective conductors with test current 200mA
• Insulation measurement with test voltage 250,500 and 1000VDC
• Open-circuit voltage (VOC) measurement up to 1000V DC
• Short-circuit current (ISC) measurement up to 15A DC
• DC voltage - DC current - DC power measurement
• Measurement of irradiation [W/m2] through reference cell HT304N
• Environmental and photovoltaic module temperature measurement through PT300N probe
• Use of compensation relationships Cells/Environment on Pdc
• Measurements always compared to the values declared by the module’s manufacturer
• Internal database for managing up to 30 PV modules (30.000 modules by software)
• Test measurement of string operation
• Mechanical inclinometer for verifying the correct inclination of sun rays
• Result for every measurement OK/NO
• Internal memory and USB output for PC connection
• Help on line on the display Efficiency measurements of the photovoltaic system
• Efficiency measurement of the photovoltaic field (DC side)

Introducing the TIS PVCHECKS Solar Multifunction Commissioning Checker - your go-to tool for maintaining photovoltaic systems. With features like continuity testing, insulation and voltage measurements, and even environmental and module temperature readings, you can ensure your system is performing at its best. Plus, with a built-in database for up to 30 module comparisons, you can trust the accuracy of your results. Upgrade your commissioning process today.

.



Battery Size	AA
Brand	Test Instrument Solutions
DC Current Measurement	15A DC
DC Voltage Measurement	1000V DC
Dimensions	235mm(h) x 165mm(w) x 75mm(d)
Display Type	LCD
Guarantee	1 Year
Insulation Test Voltage	250v/500v/1000v
Supplied with	4 cables with Alligator Clips, 2 adapters with connectors MC3, 2 adapters with connectors MC4, TOPVIEW2006 Windows software, Calibration Certificate
