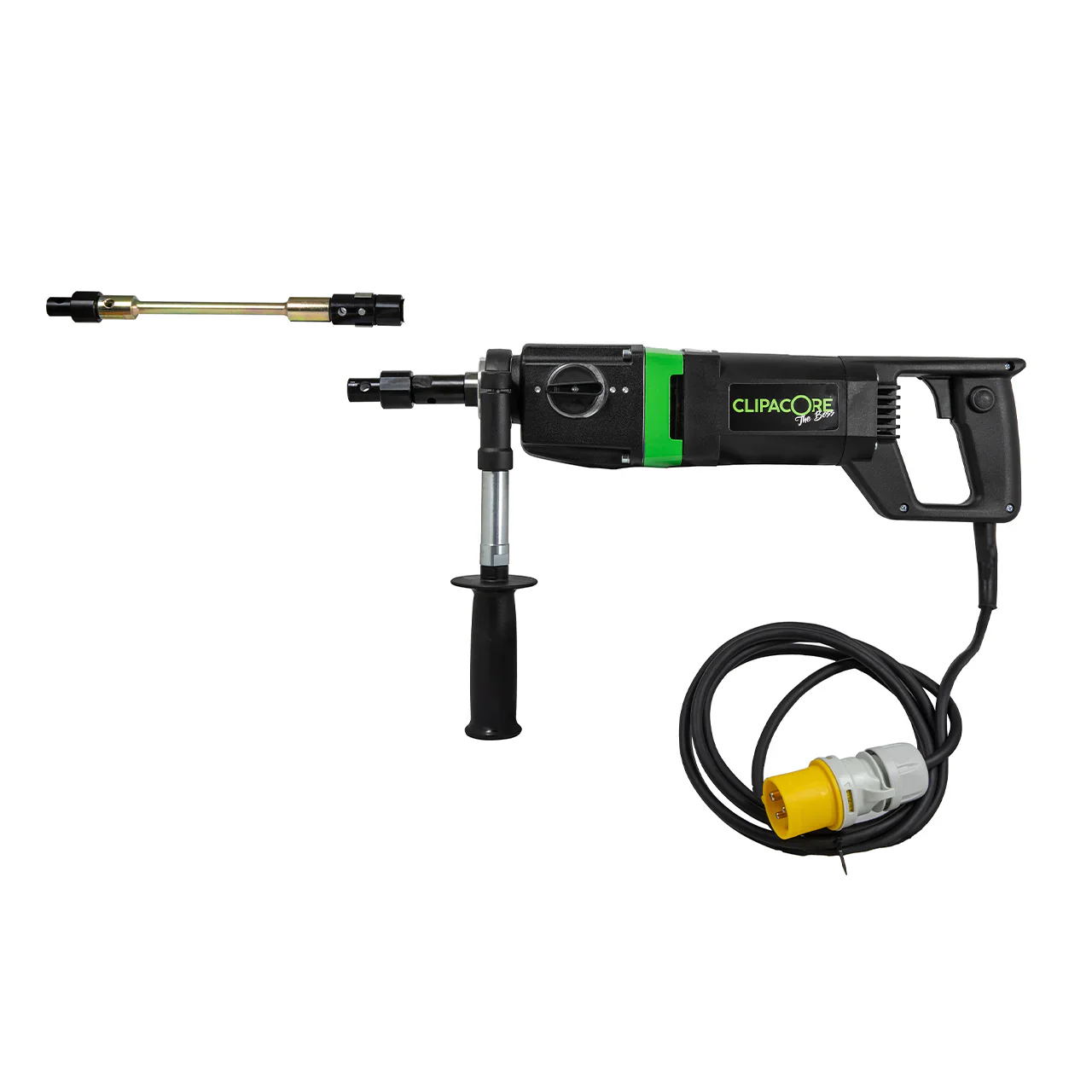

Eibenstock Clipacore The Boss Diamond Core Drill 110v

CK QCTBD110V

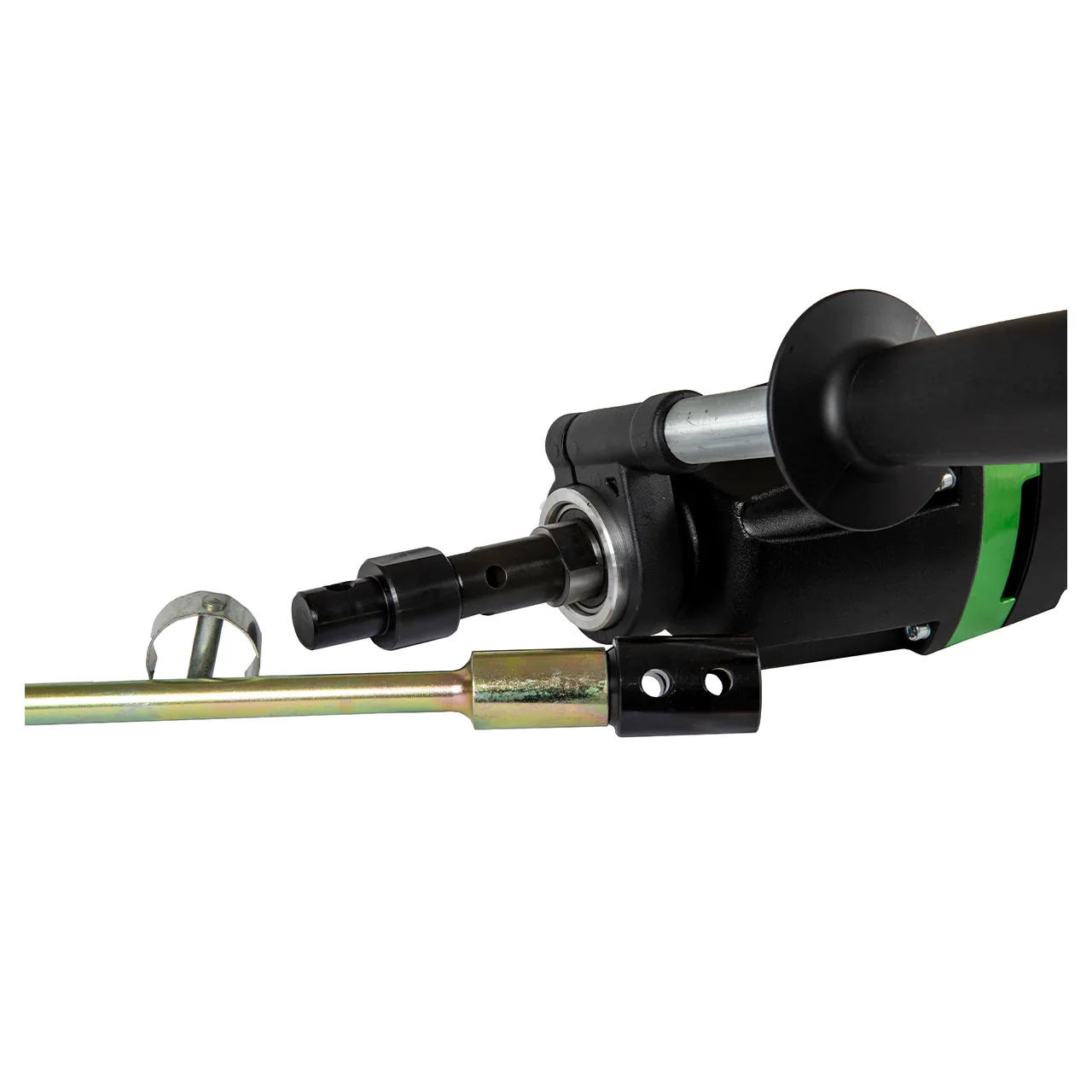

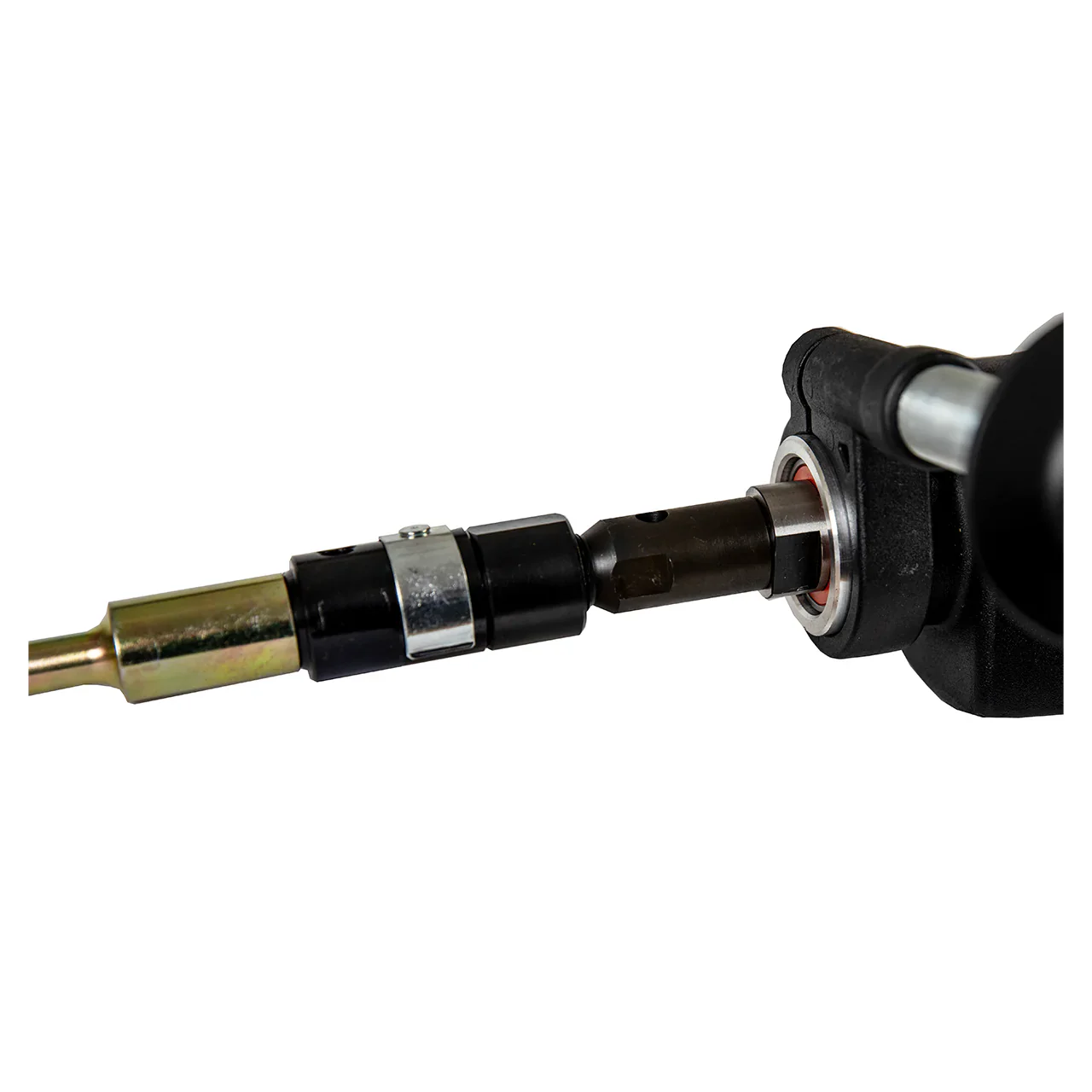

• Clipacore Quick Release Core Drill Adaptor designed for interchangeable core bits
• Variable Handle Adjustment on Collar
• Powerful 2 speed gear box, 1,000 RPM / 2,000 RPM
• Electronic Soft Start Temperature Control and Current Cut-Off
• Mechanical Safety Clutch
• 110v
• Equipped with a mechanical, electrical and thermal overload protection

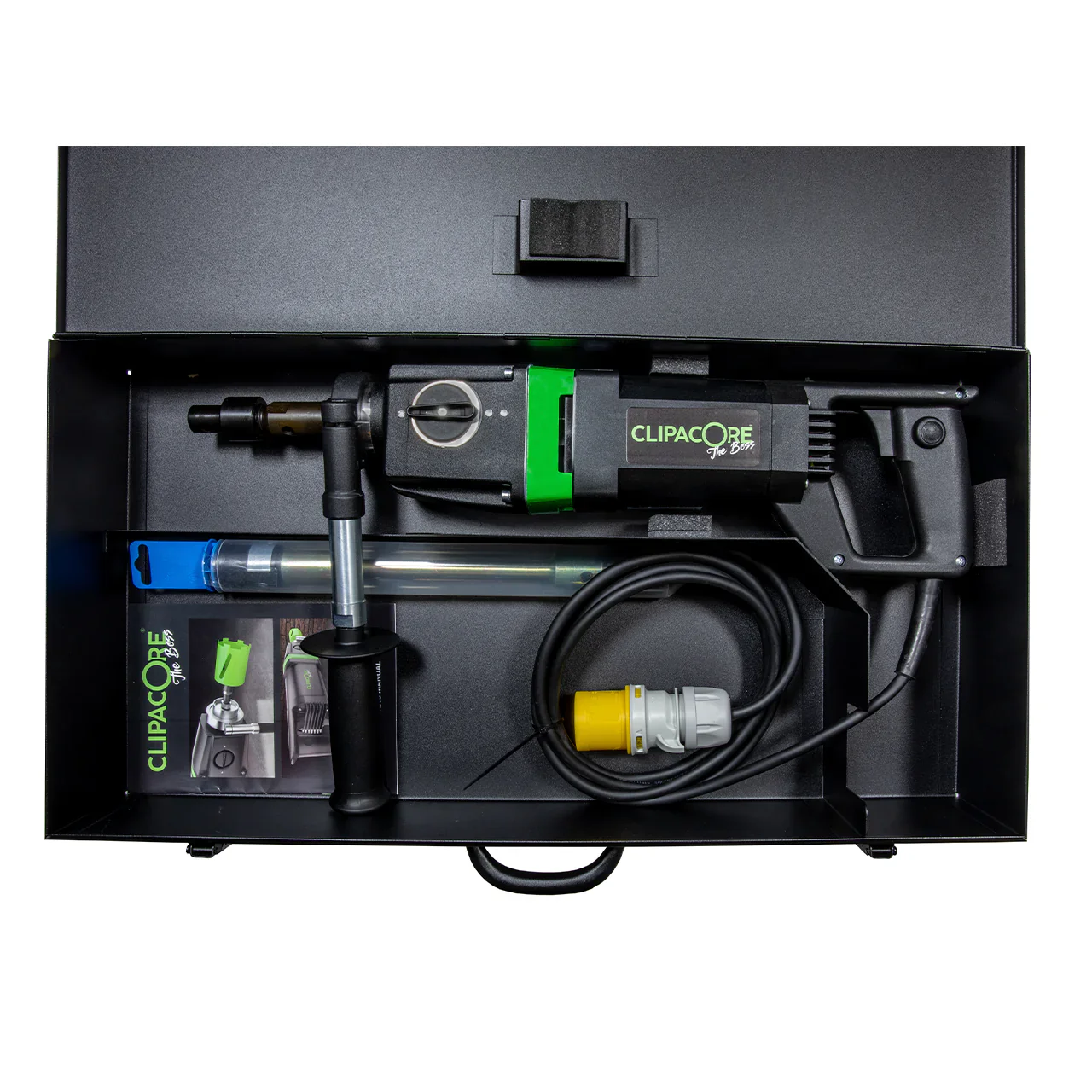

The CK QCTBD110V Eibenstock Clipacore The Boss Diamond Core Drill 110v features a robust 1500W motor with a two-speed gearbox offering 1,000 and 2,000 RPM for versatile drilling performance. It includes a quick-release core drill adaptor for fast bit changes and variable handle adjustment on the collar for enhanced control. Advanced protections—mechanical, electrical, and thermal—along with a mechanical safety clutch, ensure reliability and user safety. Designed for core bits up to 152 mm diameter, it maintains low hand-arm vibration below 2.5 m/s². Supplied with a protective metal case, this drill is ideal for demanding professional applications.

.

Rated Speed	Gear I - 1000rpm Gear II - 2000rpm
Max. Drilling Diameter	Gear I - 152mm Gear II - 82mm
Collar Diameter	53mm
Power Output	1500W
Typical Hand-Arm Vibration	<2.5 m/s²
Frequency	50/60 Hz
IP Rating	IP20
Guarantee	1 Year
Weight	6.8kg
